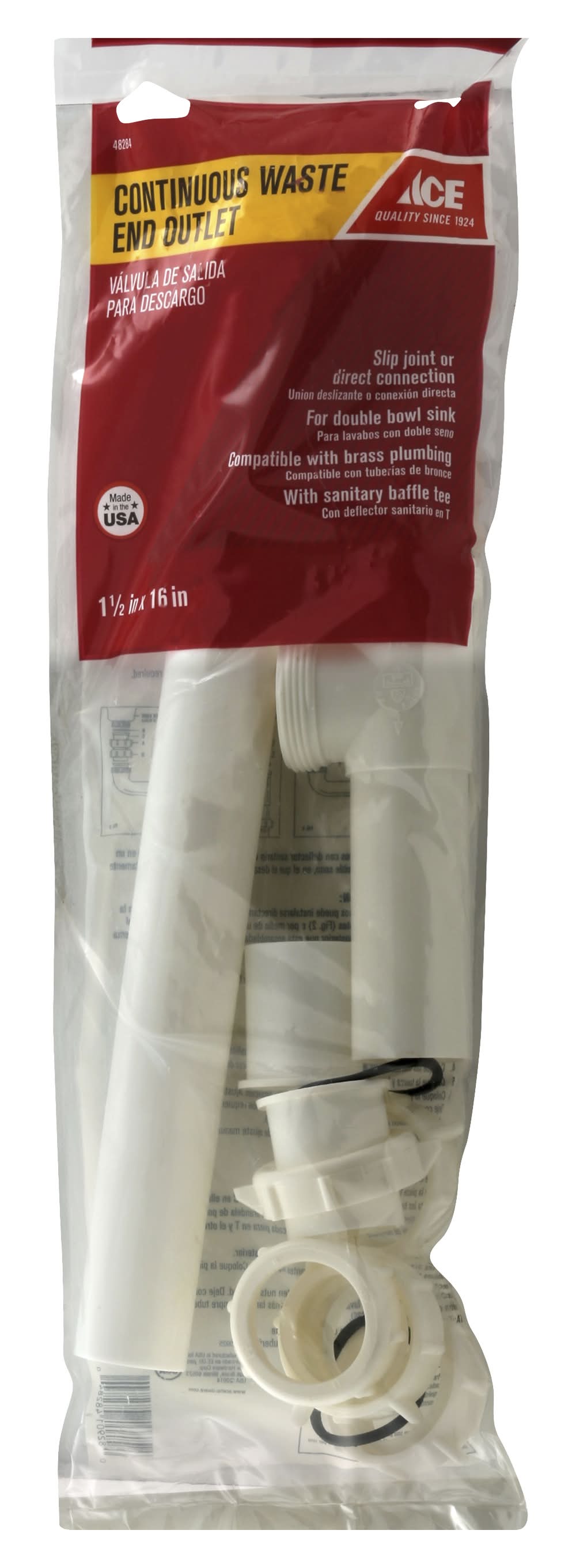

ACE Continuous Waste End Outlet

End Outlet, Continuous Waste Ace Hardware,

End Outlet, Continuous Waste Ace Hardware,

Directions: The End Outlet Waste with sanitary baffle tee is for installation in a double bowl sink drain system where the outlet drain is aligned directly under one sink. Installation Hint: The End Outlet Waste may be installed directly to the threads of the strainer by using the extra nut and insert provided (Fig. 2) or by a slip joint connection attaching the tee to the tailpiece which is assembled to the strainer (Fig. 1). Match your existing installtion. Tools Needed: Pipe or spud wrench (To remove and brass outlett tee). Instructions - Slip Joint Connection: Note: Discard two nuts and the two small inserts. 1. Turn off water at the tap. 2. Remove old end outlet waste. 3. Remove nuts A and washers B from the end outlet waste. 4. Put nuts A and washers B on strainer tailpieces. 5. Place nut and washer form J bend onto tee. 6. Place end outlet waste in position. Tighten nuts by hand. Run water to test for leaks. If your sink requires longer arms, purchase slip joint extension tubes (Ace No. 4224036). Note: These parts are designed for a hand-tight installation. Pipe thread compound is not required. Instructions - Direct Connection: 1. Turn off water at the tap. 2. Remove old end outlet waste. 3. Invert nuts A and drop short tailpiece inserts C into them. 4. Remove nuts D and place on inserts C with poly washer. 5. Join one insert assembly to the top of each tee and the other insert assembly to the waste arm. 6. Place nut and washer from J bend onto tailpiece. 7. Put washers B into top slip nuts. Place end outlet waste in position. 8. Connect end outlet waste to sink strainers and tighten nuts by hand. Run water to test for leaks. If your sink requires longer arms, purchase slin joint extension tubes (Ace No. 4224046). Note: These parts are designed for a hand-tight installation. Pipe thread compound is not required.
